SENSORS
Various types of sensors available
Commercial
-
Coin Cell Battery
-
Battery Life up to 2 years
Enterprise
-
AA Battery Type
-
Battery Life up to 10 years
Industrial
-
Industrial Battery
-
Battery life up to 7 years
Wi-Fi
-
AA Battery type
-
Uses Wi-Fi
PoE.X
-
Power over Internet
-
Line option also available
Download the latest catalogue
Temperature Sensors

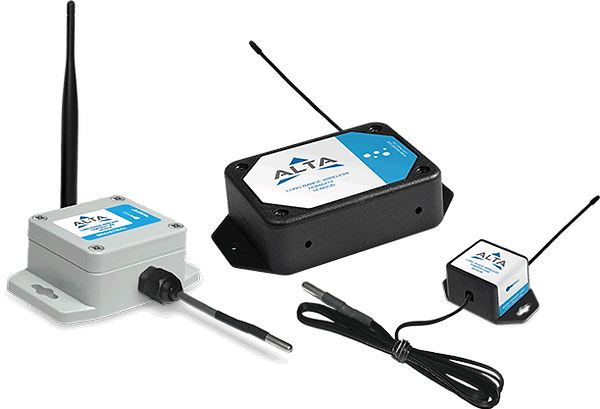

Wireless Standard Temperature Sensors
The ALTA Wireless Temperature Sensors uses a type NTC thermistor to measure temperature. The sensor outputs the ambient temperature in degrees Fahrenheit. The sensor is accurate to ± 1° C (± 1.8° F). Increased accuracy to ± 0.25° C (± 0.45° F) can be accomplished with user calibration.
Battery / Enclosure Part Number
AA MNS2-8-W2-TS-ST
Coin Cell MNS2-8-W1-TS-ST
Industrial MNS2-8-IN-TS-ST
Datasheet
Longer probe lengths
are available for this
product!
Wireless High Temperature Sensors
ALTA Wireless High Temperature Sensors use an RTD to accurately measure temperatures from -50°C to +370°C. The solution is perfect for high temperature critical applications such as ovens, heaters, furnaces and boilers.
Battery / Enclosure Part Number
AA MNS2-8-W2-TS-HT-L03
Industrial MNS2-8-IN-TS-HT-L03
Datasheet
Longer probe lengths
are available for this
product!
Wireless Low Temperature Sensors
ALTA wireless Low Temperature Sensors use an RTD to accurately measure temperatures from -200°C to +162°C. This solution is recommended for medical grade coolers that cool at temps colder than -40C, cryogenic applications, as well as standard freezers and refrigerators.
Battery / Enclosure Part Number
AA MNS2-8-W2-TS-LT-L03
Industrial MNS2-8-IN-TS-LT-L03
Datasheet
Longer probe lengths
are available for this
product!
Wireless Duct Temperature Sensors
Wireless Duct Temperature Sensors in commercial, enterprise, and industrial-grade housings are available for duct monitoring. Each duct temp sensor features a probe temperature range of -40°C to +150°C (-40°F to +302°F) and an NTC type thermistor with UL listed plenum cable for superior accuracy.
Battery / Enclosure Part Number
AA MNS2-8-W2-TS-DT-L08
Coin Cell MNS2-8-W1-TS-DT-L08
Industrial MNS2-8-IN-TS-DT-L08
Datasheet
Longer probe lengths
are available for this
product!
Wireless Digital Temperature Sensor
Monnit’s ALTA Digital Temperature Sensor has a range of -40°F to +257°F (-40°C to +125°C) to support cold food storage, clinical vaccine storage, research labs, and other health-related fields.
Battery / Enclosure Part Number
AA MNS2-8-W2-TS-SD-L03
Datasheet
Humidity Sensors
Wireless Humidity Sensors
ALTA Wireless Humidity Sensors allow you to monitor the relative humidity of the air within a room or enclosure. This solution is ideal for monitoring humidity within greenhouses, industrial spaces, museums, saunas, and humidors. They can also be used for residential applications such as controlling mold, mildew, or dust mites.
Battery / Enclosure Part Number
AA MNS2-8-W2-HU-RH
Coin Cell MNS2-8-W1-HU-RH
Industrial MNS2-8-IN-HU-RH
Datasheet
Open/Closed Sensors
Wireless Open / Closed Sensor
ALTA Wireless Open / Closed sensors provide information on the status of doors, windows, cabinets, etc. Know if a building or area is being accessed when it should not be, or if a door or window has been left open.
Battery / Enclosure Part Number
AA MNS2-8-W2-OC-ST
Coin Cell MNS2-8-W1-OC-ST
Industrial MNS2-8-IN-OC-ST
Datasheet
Infrared Motion & Occupancy Sensor
Wireless Infrared Motion Sensor
Monnit’s Wireless ALTA PIR Motion Sensors detect motion via passive infrared (PIR) technology to augment facility security, protect inventory, or optimize building services through usage data.
Battery / Enclosure Part Number
AA MNS2-8-W2-MS-IR
AA (Wide Angle) MNS2-8-W2-MS-IR-WA
Coin Cell MNS2-8-W1-MS-IR
Datasheet
AC Current Meters
Wireless 20 Amp AC Current Meter
This low power, 20 Amp AC Current Meter remotely audits power consumption. The electric power draw of servers, vending machines, or workout machines can all be monitored using this current transducer.
Battery / Enclosure Part Number
AA MNS2-8-W2-CM-020
Industrial MNS2-8-IN-CM-020
Datasheet
Wireless 150 Amp AC Current Meter
Remotely monitoring your business with a 150 Amp AC Current Meter opens up many possibilities. This is enough to measure the power consumption of server systems and current used by low to medium power industrial equipment.
Battery / Enclosure Part Number
AA MNS2-8-W2-CM-150
Industrial MNS2-8-IN-CM-150
Datasheet
Wireless 500 Amp AC Current Meter
A one-phase high power 500 Amp AC Current Meter is ideal for measuring commercial generators’ power consumption, heavy duty industrial equipment, or main breakers in industrial and commercial breaker panels.
Battery / Enclosure Part Number
AA MNS2-8-W2-CM-500
Industrial MNS2-8-IN-CM-500
Datasheet
Light Meter
Wireless Light Meter
These sensors enjoy a broad customer base because they help protect light-sensitive materials and irreplaceable art, enhance crop yields, and even play a vital role in security.
Battery / Enclosure Part Number
AA MNS2-8-W2-LS-LM
Industrial MNS2-8-IN-LS-LM
Datasheet
Wireless PAR Light Meter
It’s basic botany—plants get the energy to grow from light through photosynthesis. But not just any light. Crops require a specific amount of light during a particular timeframe. The ideal light for plants comes from the wavelength known as the photosynthetically active radiation (PAR) spectrum. The ALTA® by Monnit PAR Light Meter monitors this spectral range (389 to 692 nanometers) from indoor and outdoor light sources, including LEDs.
Battery / Enclosure Part Number
Industrial MNS2-8-IN-LS-PAR
Datasheet
Three-Phase Current Meters
Wireless 20 Amp Three-Phase Current Meter
Incorporate this 20-amp Three-Phase, revenue grade device into facilities relying on powerful devices and systems, such as machine shops. Remotely monitor power consumption to track motor health or power system faults. Monitor min/max RMS current, duty cycle of each phase combined amp hours, and other metrics.
Battery / Enclosure Part Number
Industrial MNS2-8-IN-3P-020
Datasheet
Wireless 150 Amp Three-Phase Current Meter
Remotely monitoring your business with a 150 Amp AC Current Meter opens up many possibilities. This is enough to measure the power consumption of medium to heavy duty three-phase systems: environmental chambers, very large HVAC systems, or medium and heavy duty industrial motors.
Battery / Enclosure Part Number
Industrial MNS2-8-IN-3P-150
Datasheet
Wireless 500 Amp Three-Phase Current Meter
Use this sensor and be alerted about imbalances or power faults. The sensor uses 3 x 0–500 amp current transducers to monitor the main power for commercial buildings.
Battery / Enclosure Part Number
Industrial MNS2-8-IN-3P-500
Datasheet
Interface Meters
Wireless Dry Contact Sensors
The ALTA Wireless Dry Contact sensor detects when there is contact between the two wired end points. It can easily be integrated into existing switches or contact plates. When the sensor detects contact between the two end points, it will immediately turn on the RF radio and transmit the data to the wireless gateway
and iMonnit Monitoring and Notification System.
Battery / Enclosure Part Number
AA MNS2-8-W2-DC-CF-L01
Coin Cell MNS2-8-W1-DC-CF-L01
Industrial MNS2-8-IN-DC-CF-L01
Datasheet
Wireless 20 mA Interface Current Meter
Easily update existing scientific or industrial sensors to wirelessly collect process data. Remotely monitor current transducers, as well as oxygen, pH, magnetic flow sensors, and more.
Battery / Enclosure Part Number
AA MNS2-8-W2-MA-020
Coin Cell MNS2-8-W1-MA-020
Industrial MNS2-8-IN-MA-020
Datasheet
Accelerometers
Wireless G-Force Snapshot Accelerometer
The G-Force Snapshot sensor activates at a set time interval (defined by user) and measures g-force along X, Y, and Z axes. Primary use is as an inclinometer or tilt sensor.
Battery / Enclosure Part Number
AA MNS2-8-W2-AC-GS
Coin Cell MNS2-8-W1-AC-GS
Industrial MNS2-8-IN-AC-GS
Datasheet
Wireless Advanced Vibration Meter
The Advanced Vibration Meter uses an accelerometer to measure vibration and frequency on three axes. The sensor reports vibration (acceleration, velocity, displacement, or acceleration peak), frequency (Hz/RPM), and crest factor on all three axes. It also reports duty cycle (how much of the report interval that vibration was present), and temperature.
Battery / Enclosure Part Number
AA MNS2-8-W2-AC-ADV
Industrial MNS2-8-IN-AC-ADV-L10
Datasheet
Wireless Voltage Detection
Wireless 500 VAC Voltage Meter
Integrate a Wireless 500 VDC Voltage Meter to monitor the electrical status of items you depend on, like industrial lift trucks, solar PV panels, and power banks. Remotely monitor status and operation.
Battery / Enclosure Part Number
AA MNS2-8-W2-VM-500
Coin Cell MNS2-8-W1-VM-500
Industrial MNS2-8-IN-VM-500
Datasheet
Wireless 500 VAC Voltage Detection Sensor
Wirelessly monitor voltage for critical equipment and systems up to 500 VDC. Keep an eye on sprinkler systems, HVAC, power couplings, and sump pumps. Know about electrical faults and act quickly to keep business moving.
Battery / Enclosure Part Number
AA MNS2-8-W2-VM-500
Coin Cell MNS2-8-W1-VM-500
Industrial MNS2-8-IN-VM-500
Datasheet
Water Detection Sensors
Wireless Rope Sensor
The ALTA Wireless Water Rope Sensor detects the presence of water anywhere along the surface of the rope. The sensor comes with 10 feet of water rope. Additional 10 ft. sections are available and can be connected up to 100 feet.
Battery / Enclosure Part Number
AA MNS2-8-W2-WS-WR
Coin Cell MNS2-8-W1-WS-WR
Industrial MNS2-8-IN-WS-WR
Datasheet
Wireless Water Detection Puck
Housed in a vulcanized hockey puck, this submersible sensor detects water’s presence (ornon-presence). Drop this sensor nearly anywhere to monitor for leaks / spills, e.g., production,manufacturing, or building maintenance.
Battery / Enclosure Part Number
AA MNS2-8-PK-WS-PS
Datasheet
Pulse Counters
Wireless Pulse Counters
The ALTA Wireless Pulse Counter can be connected to the pulse output of a system (water meter, power meter, etc.) to count the number of actuations within a given time frame. The wireless pulse counter is an electronic counter capable of counting passive (open/closed switch) or active (up to +15 VDC) pulses.
Battery / Enclosure Part Number
AA MNS2-8-W2-PC-01
Coin Cell MNS2-8-W1-PC-01
Industrial MNS2-8-IN-PC-01
Datasheet
Pressure Meters
Wireless 50 PSIG Pressure Meters
Monnit’s Wireless 50 PSIG Pressure Meters keep lab managers, field service engineers, and other professionals connected to processes and machinery. If line pressure deviates from user-set thresholds, this pressure sensor instantly alerts the user via a text, email, or call.
Battery / Enclosure Part Number
AA MNS2-8-W2-PS-050
Industrial MNS2-8-IN-PS-050
Datasheet
Wireless 300 PSIG Pressure Meters
Indispensable to facility managers, fabricators, and legacy machine operators, Monnit’s 300 PSIG Wireless Pressure Meter remotely monitors line pressures (gas, liquid, or vapors). If pressure exceeds user-defined limits, the user receives an alert via an email, call, or text.
Battery / Enclosure Part Number
AA MNS2-8-W2-PS-300
Industrial MNS2-8-IN-PS-300
Datasheet
Gas Detection Sensors
Wireless Carbon Monoxide (CO) Sensor
This unique battery-powered sensor monitors job sites, offices, and residential com-plexes for carbon monoxide (CO). Within a small footprint, the MEMS-based device packs a 0–1,000 PPM measurement range and automated data logging.
Battery / Enclosure Part Number
AA MNS2-8-W2-GS-C1
Datasheet
Wireless Carbon Dioxide (CO2) Sensor
Trusted by facility managers, this MEMS-based sensor monitors CO levels in the air.Get an alert if CO
levels surpass preset limits. It’s used to protect indoor air quality in greenhouses, marine vessels, and HVAC systems.
Battery / Enclosure Part Number
AA MNS2-8-W2-GS-C2
Datasheet
Wireless Hydrogen Sulfide (H2S) Gas Sensor
This safety sensor tracks the presence of HS gas, which is toxic and flammable.Use to safeguard workers in oil / gas production, wastewater treatment, utilities, and other hazardous areas.
Battery / Enclosure Part Number
AA MNS2-8-W2-GS-H2S
Datasheet
Air Quality Sensor
Wireless Air Quality Sensor
This mount-and-monitor device measures particulate matter that’s coarse (PM10),fine (PM2.5), and ultra-fine (PM1) inside mines, production facilities, commercial kitchens and facilities, as well as business buildings. This unit is powered by line-power and has a battery backup.
Battery / Enclosure Part Number
AA MNS2-8-W2-AQ-P25A-LPO
Datasheet
Air Velocity Sensors
Wireless Air Velocity Sensors
The Air Velocity Sensor measures the pressure difference between two input ports, as well as ambient temperature and altitude to determine airflow speed in a system. Use in sensitive areas, e.g., hospitals and clean rooms.
Battery / Enclosure Part Number
AA MNS2-8-W2-PS-AV-LPO
Industrial MNS2-8-IN-PS-AV
Datasheet
Differential Air Pressure Sensors
Wireless Differential Air Pressure Sensors
This sensor measures the pressure difference between its two ports. Ideal for food service, healthcare, and academia. Common applications include clean rooms, pharmaceutical production, commercial kitchens,
and HVAC or applications where negative air pressure monitoring is required.
Battery / Enclosure Part Number
AA MNS2-8-W2-PS-DP-LPO
Industrial MNS2-8-IN-PS-DP
Datasheet
Ultrasonic Ranging Sensors
Wireless Industrial Ultrasonic Ranging Sensor
Packaged in a weatherproof housing, Monnit’s ALTA Industrial Ultrasonic Ranging Sensor measures levels or detects objects. Indoor and outdoor applications include vehicle / object detection, capturing liquid levels, and tracking inventory.
Battery / Enclosure Part Number
Industrial MNS2-8-IN-US-IN-MPL-PA
Datasheet
Food Probe Thermometer
Wireless Food Probe Thermometer
The ALTA Food Probe replaces manual temperature checks and enhances food quality and safety by bringing the power of remote data collection to commercial kitchens, food production, and restaurants.
Battery / Enclosure Part Number
AAA MNS2-8-W2-TS-FP
Datasheet
Vehicle Detection Sensor
Wireless Vehicle Detect / Counter Sensor
This easy-to-deploy sensor detects vehicle presence, counts traffic, and tracks the time a vehicle is parked. Ideal for fleet management, parking garages, service centers, curbside retail, and more.
Datasheet
Battery / Enclosure Part Number
Industrial MNS2-8-IN-VS-TT
Wireless Soil Moisture Sensors
Wireless Soil Moisture Sensors
The Soil Moisture Sensor measures soil water tension (matric potential) and temperature. With a resistive granular matrix element, you can optimize your tension parameters to determine the earliest indication of water stress and make sure you irrigate before it reaches that point. The unique element feature delivers consistent calibration without needing to recalibrate for every installation.
The Sensor also has a thermistor-based temperature element. Its readings will help you assess temperature -40°C to 125°C and the moisture’s temperature compensation, eliminating the need to measure moisture every time the soil temperature changes.
Battery / Enclosure Part Number
Industrial MNS2-8-IN-WS-WM-L05
Datasheet
